Diffractive Optical Element (DOE)

Redistributes light to create tailored patterns.

This optical component has a microstructured surface that diffracts light into a tailored pattern. The light is redistributed with very little loss.

Video of the sample from physicsfun on Instagram.

What are diffractive optical elements used for:

Diffractive optical elements are used for beam shapers, beam splitters, line generators, and diffusers. These components are used in machine vision systems, 3D sensors, bar code scanners, and measurement solutions. The Microsoft Kinect controller uses a projected dot pattern of infrared light generated with a DOE.

More information:

Standard elements are available for many applications, but the microstructure – and thereby the light pattern – can be tailored to create virtually any pattern desired. The sample is made from polycarbonate, but you can get glass elements for high-energy applications such as laser cutting and drilling. DOEs are used mostly with laser light, but partially coherent light from LEDs or other light sources can also be manipulated.

Inspiration for new applications:

Attach different DOEs to a laser hanging from the ceiling to project board game layouts onto a table.

107,00 kr

Tax included

Quantity

Set of 1 Set of 2 Set of 3

Product variants

The sample you get:

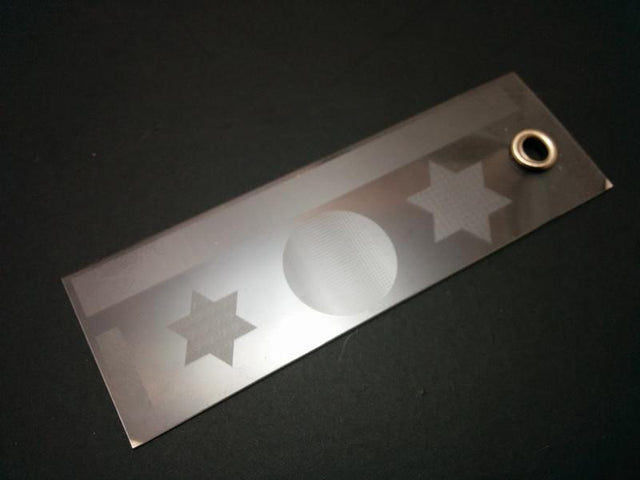

The sample measures 7,5 cm x 2,5 cm.

Use a laser pointer to see five different patterns. There are two star signs, the moon, a company logo, and a globe that rotates as the laser is moved along the microstructured surface.

You get a discount if you buy more than one sample:
1 sample = 14 EUR for each
2 samples = 12 EUR for each
3 samples = 11 EUR for each
