Product category: Polymer

Plastic design teaching tool

Polyman

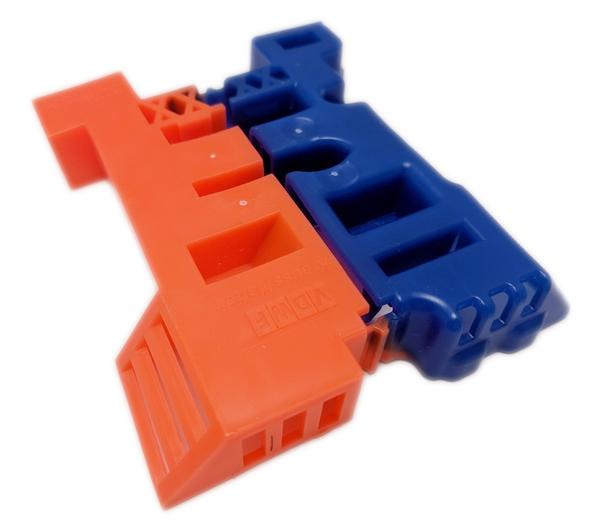

This moulded plastic piece includes features that illustrate a number of good and bad practices when designing components for plastic injection moulding.

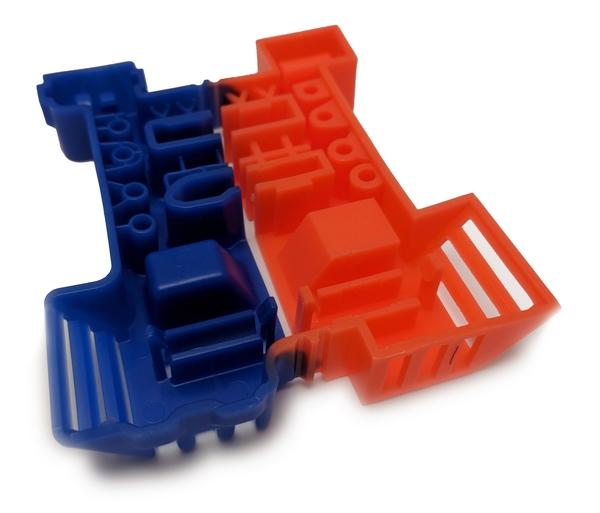

The blue side shows the best way to design different features, which result in lower tooling costs and a shorter moulding cycle. The orange side shows examples of bad design practices.

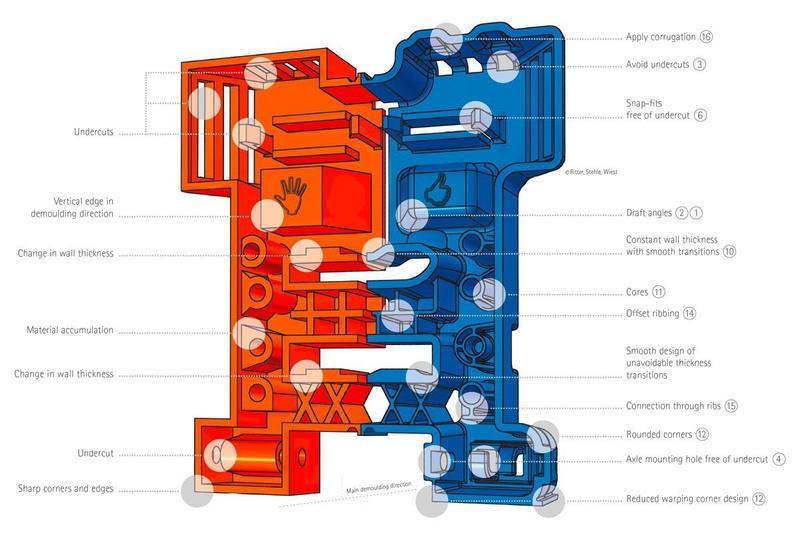

By studying the design, you can learn about the importance of uniform wall thicknesses, draft angles, cores, ribs, and other features. You can also see clever examples of how to implement undercuts, snap fits, axle mounting holes, and ventilation grids.

It is moulded in polyethylene.

What is the Plastic design teaching tool used for:

The piece is used as a teaching tool for designers of plastic components, mould makers, and design and engineering students.


115,00 DKK
Tax included


The sample you get:

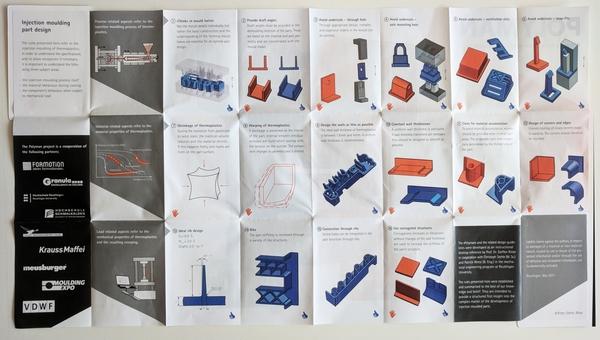

The sample has the dimensions 95 mm x 80 mm x 17 mm. With the sample you get a printed brochure that describes the features. You can see the brochure in the product pictures.


Estimate the shipping cost

Related products:

Please also check out our plastic material sample set with moulded samples of 20 different of the most commonly used plastics: PlasticProp - Plastic Materials Sample Set
