Product category: Electric

Z-Axis Conductive Tape

Electricity is conducted through the tape but not lengthwise.

This double adhesive tape is filled with conductive particles, making it conductive through its thickness (the Z-axis). The particles are spaced so far apart that the tape is electrically insulating in the plane of the tape (X- and Y-axis). Materials with physical properties that have different values when measured in different directions are called "anisotropic". This tape is therefore known as "anisotropic conductive tape".

Applications for Z-axis conductive tape

It is used for electronic assembly instead of conventional mechanical connectors or soldering joints. Apple uses it in iPods to connect flexible electronics sub-assemblies with circuit boards. Other applications include assembly of displays and bonding and grounding of electromagnetic shielding materials.

More information:

The tape can be die-cut to the desired shape. There are different variants optimised for glass, metals, plastics, and other substrates. The tape can withstand temperatures from -40°C to 85°C.

84,00 DKK

Tax included

Title

Sample Sample + 1 meter

Product variants

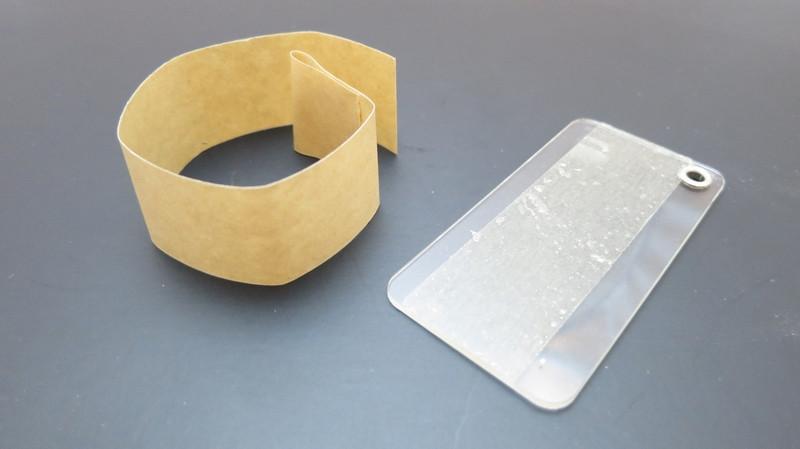

The sample you get:

You can choose between:

- A small piece of tape applied to an acrylic plate

- A small piece of tape applied on an acrylic plate + 1 meter of tape on a roll

---
